Mud Circulatory System Pressure Seal Valve Metallic For Drilling Wells

Brand Name : TR Solids Control

Model Number : Z23X-35-DN50 Z23X-35-DN65 Z23X-35-DN60 Z23X-35-DN100

Certification : API Certificate, ISO Certificate

Place of Origin : Xi'an China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 100 sets per month

Delivery Time : Within 10 days after deposit

Packaging Details : Pallet or wooden case

Types : Z23X-35-DN50

Operating pressure(Mpa) : 35(5000PSI)

Nominal bore diameter(mm) : Φ50(2)

Working media : mud

Type of connection : Union-connected

Joint connection sizes(D) : TR20X6

Length of structure（L） : 205

Contact Now

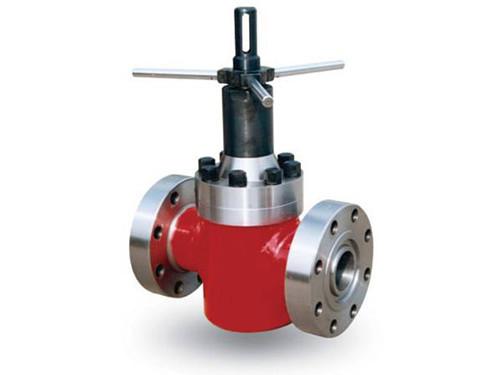

Metallic Seal Mud Valve

Mainly applicable to the equipment of mud circulatory system for drilling wells,theZ23X-35 series of mud gate valves are used to control or shut off the circulation of the mud fuild flow. The trapezoidal thread connection of the mud gate value makes it easy and efficient to install. With its high degree of rigidity ,the mud gate value is safe and reliable to operate. The seat and gate of the value are sealed by use of the parallel elastic sealing technology to ensure good sealing effects and ease of opening and closing. The two ends of value,which are connected with the pipeline,are tightly sealed and the close contact is maintained through movable spherical touch. In addition ,the swing joints combined with the O-type rubber sealing rings ensure greater sealing effectiveness and require less straightness of the pipeline length where are the value is to be installed.

Mud Circulatory System Pressure Seal Valve Metallic For Drilling Wells

No.	Name	Quantity	Material	Remark
1	Note Oil Cup	1	Assy.
2	Hand wheel	1	Steel
4	Handle	1	Steel
6	Nut of cover	1	Steel
7	O wave spring	1	NBR
8	Stent	1	Steel
9	Valve lever	1	410
10	O wave spring	1	NBR
11	Fillers press cover	1	Steel
12	Stem seal assembly	1	Assy.
13	Tight set screw	1	Steel
15	Connector	1	4130
16	Valves cover	1	4130
17	LocationPin	1	Steel
18	O wave spring	1	NBR
19	Gate plate	1	410
20	Valve body	1	4130
21	Valves seat	1	Steel+NBR
22	Handle sales	1	Steel
23	Valve cover bolts	2	4140
24	Nut of cover	2	1045
25	Valve bolts	4	4140
26	Valve Nut	4	1045

Technical Parameter

Types	Z23X-35-DN50	Z23X-35-DN65	Z23X-35-DN60	Z23X-35-DN100
Operating pressure(Mpa)	35(5000PSI)
Nominal bore diameter(mm)	Φ50(2)	Φ63(2-1/2)	Φ76(3)	Φ101.6(4)
Working media	mud
Type of connection	Union-connected
Joint connection sizes(D)	TR20X6	TR130X6	TR150X6	TR180X8
Length of structure(L)	205	235	270	330
